BV8900Y
Fascia Mount
Previous
Next
Optimized solution for raised floors and decking

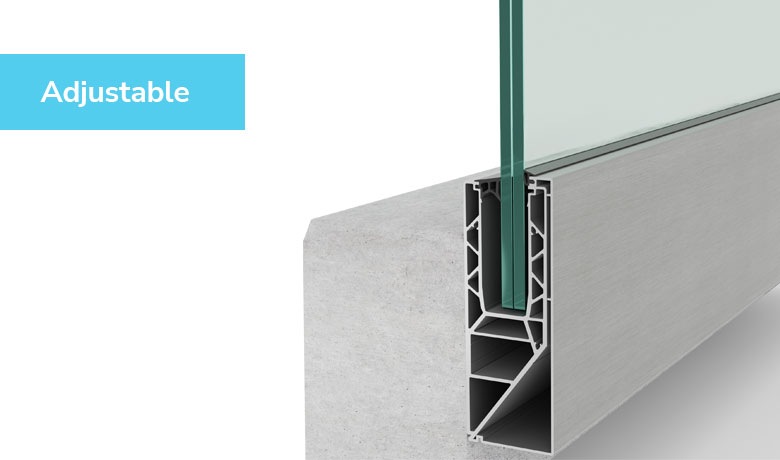

BV8900Y is a high-end adjustable glass railing system designed for projects with raised floors, decks, and terraces where a clean architectural line is important.
The specific Y-configuration allows installation without the need to build an additional board, providing a stable base for the glass railing. It uses InstAlign technology to easily align the glass within the profile.
- Up to 40% faster installation compared to standard multi-component systems
- Eliminates the need for an additional board
- Ideal for raised floors, decking, and terraces
- Adjustment only with M5 hex key
- For laminated tempered glass 13.76 – 21.52 mm
Optimized profile with excellent price/performance balance
Suitable for residential, commercial and public buildings
Length: 5000mm
Height: 212mm
Width: 75mm
Channel: 6.69 kg / meter
Total: 7.64 kg / meter
Aluminium: EN AW6060
Color: Inox, Natural,
RAW, Custom Color
Mounting anchors:
M10 / Concrete screw
Glass thickness:
12 mm / 6.6.2 / 6.6.4
16 mm / 8.8.2 / 8.8.4
20 mm / 10.10.2 / 10.10.4
Maximum height:
up to 1300 mm
Certificates available:
Institute of Giordano, LSL.
Consultation: The system can be further configured according to project requirements.
VERY PRECISE
adjustment up to + / - 1.5°
EXCELLENT STRENGTH
up to 300kg pressure
MOST OPTIMIZED
and innovative system
