BV8900L
Base Mount
Previous
Next
Optimized adjustable edge mounting

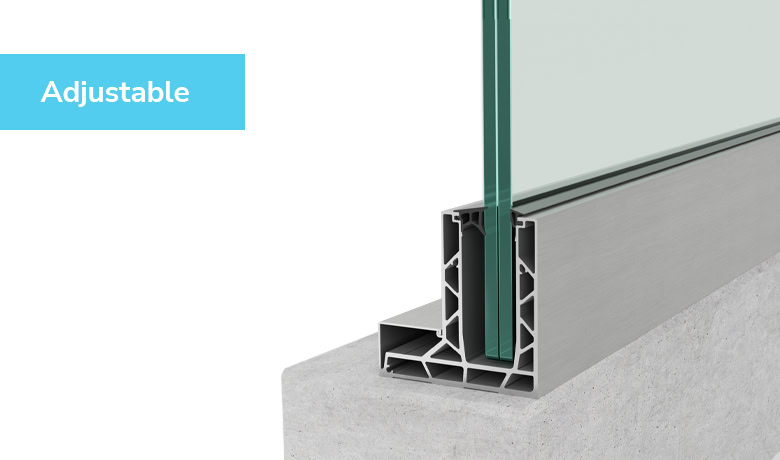

BV8900L is a high-end adjustable floor-mounted glass railing system with a specific L-shaped profile.
It uses InstAlign technology, which allows easy alignment of the glass panel from the inside of the profile.
- Up to 40% faster installation compared to standard multi-component systems
- Adjustment only with M5 hex key
- For laminated tempered glass 13.76 – 21.52 mm
- Lightweight and optimized profile with excellent price/performance balance
- Suitable for residential, commercial, and public buildings
It guarantees a stable construction even when installed at the edge of the mounting surface. The result is the fastest, most precise, and easiest adjustment of the glass.
Length: 5000mm
Height: 117mm
Width: 70mm
Channel: 5.85 kg / meter
Total: 6.8 kg / meter
Aluminium: EN AW6060
Color: Inox, Natural,
RAW, Custom Color
Mounting anchors:
M10 / Concrete screw
Glass thickness:
12 mm / 6.6.2 / 6.6.4
16 mm / 8.8.2 / 8.8.4
20 mm / 10.10.2 / 10.10.4
Maximum height:
up to 1300 mm
Certificates available:
Institute of Giordano, LSL.
Consultation: The system can be further configured according to project requirements.
VERY PRECISE
adjustment up to + / - 1.5°
EXCELLENT STRENGTH
up to 300kg pressure
MOST OPTIMIZED
and innovative system
Products related to BV8900L
Round
Square
Decorative
Hexagon
Two-component
Gun
Chemical
M10 Concrete
Previous
Next
BV8900L
Base Mount
L – profile
Optimized adjustable edge mounting
BV8900L is a high-end adjustable floor-mounted glass railing system with a specific L-shaped profile.
It uses InstAlign technology, which allows easy alignment of the glass panel from the inside of the profile.
- Up to 40% faster installation compared to standard multi-component systems
- Adjustment only with M5 hex key
- Suitable for loads up to 2 kN
- For laminated tempered glass 13.76 – 21.52 mm
- Lightweight and optimized profile with excellent price/performance balance
- Suitable for residential, commercial and public buildings
It guarantees a stable construction even when installed at the edge of the mounting surface. The result is the fastest, most precise, and easiest adjustment of the glass.
glass
Glass thickness:
12 mm / 6.6.2 / 6.6.4
16 mm / 8.8.2 / 8.8.4
20 mm / 10.10.2 / 10.10.4
Maximum height:
up to 1300 mm
Certificates available:
Institute of Giordano, LSL.
Consultation: The system can be further configured according to project requirements.
parameters
Length: 5000mm
Height: 117mm
Width: 70mm
Channel: 5.85 kg / meter
Total: 6.8 kg / meter
Aluminium: EN AW6060
Color: Inox, Natural,
RAW, Custom Color
Mounting anchors:
M10 / Concrete screw
